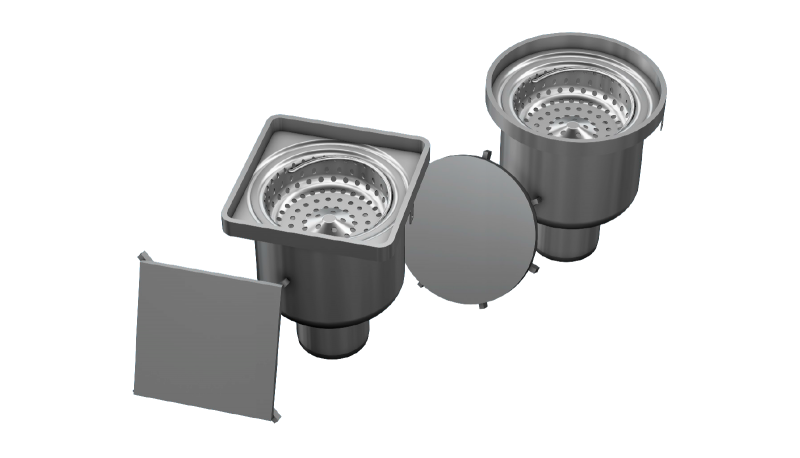

316Ti STAINLESS STEEL INDUSTRIAL FLOOR DRAINS

Solid stainless steel rims for Round and Square Designs

  • No epoxy fill, solid stainless surrounds
  • Maximum strength, durability and hygiene
  • Sharp edge transition improves floor seal integrity and hygiene
  • Square or round top options
  • Square top drains feature rounded corners to reduce floor crack propagation

Big, deep drawn, smooth sided bowls

  • 110mm and 160mm outlet options standard
  • Big 218 mm and 283 mm drain bowls
  • Superior hydraulic performance and lower maintenance
  • Smooth sides and long radius transitions ensures maximum hygiene

Wide range of hygienic accessories

  • Removable, easy to clean foul air traps, WaterMark approved
  • Big basket capacities for less maintenance, shallow and deep options, 10mm, 6mm, 4 mm and 2 mm perforation options
  • Security bolted outlet strainer options
  • Wide range of strong, durable and hygienic grating including bar, anti-slip, plate and ultra hygienic and strong laser cut billet stainless grates

316Ti STAINLESS STEEL LARGE FLOOR DRAINS (MADE TO ORDER)

  • 447mm with 160mm outlet standard
  • 647mm with 200mm outlet standard
  • Strong, fully welded square profile edge protection, not epoxy filled
  • Hinged stainless steel bar cover with “hold-in-up position” feature
  • Grate recess hygienically formed with the side walls on all sides
  • Optional WaterMark certified foul air traps, large capacity baskets and outlet strainers with 10mm, 6mm, 4mm or 2mm perforations

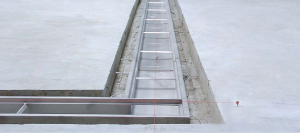

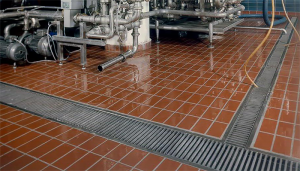

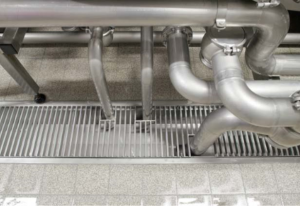

316Ti STAINLESS STEEL INDUSTRIAL DRAINAGE CHANNELS

  • Strong stainless steel reinforced channel edges as standard, not epoxy filled
  • Hygienic, strong and durable
  • Channels from 150mm up to 500mm standard widths
  • A range of grates and covers including bar, anti-slip, plate and ultra hygienic and super strong laser cut billet stainless grates
  • Efficient and hygienic V-profile and also U-profile for greater capacity – feather drains etc
  • Anchor tags every 500mm
  • Adjustable levelling feet every 1000mm
  • Easy, flanged/bolted, weld-free assembly on site eliminates hot works
  • Custom made for each project with short lead times

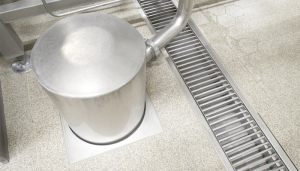

316Ti STAINLESS STEEL SLOT CHANNEL

  • Strong stainless steel reinforced channel edges as standard, not epoxy filled
  • Hygienic, strong and durable
  • Grate-free,cost-effective, easy maintenance and improved safety
  • 20mm slot opening and 70mm width hydraulic capacity
  • Efficient and hygienic V-profile
  • Anchor tags every 500mm
  • Adjustable levelling feet every 1000mm
  • Easy, flanged/bolted, weld-free assembly on site eliminates hot works
  • Custom made for each project with short lead times
